We started to solve the forced harmonic oscillator equation:

\[\ddot{x} + 2 \beta \dot{x} + \omega_0^2 x = f(t)\]

We examined the case of a sinusoidal driving force:

\[\ddot{x} + 2 \beta \dot{x} + \omega_0^2 x = f_0 \cos(\omega t)\]

There’s a complimentary case where the driving force is a sine wave:

\[\ddot{y} + 2 \beta \dot{y} + \omega_0^2 y = f_0 \sin(\omega t)\]

---

Reminders

We combined the two equations into a complex equation using these identities:

\[z(t) = x(t) + i y(t)\]

\[e^{i \omega t} = \cos(\omega t) + i \sin(\omega t)\]

The resulting equation is:

\[\ddot{z} + 2 \beta \dot{z} + \omega_0^2 z = f_0 e^{i \omega t}\]

Notice that there’s a homogeneous part (\(z_h\)) and a particular part (\(z_p\)).

\[\ddot{z}_h + 2 \beta \dot{z}_h + \omega_0^2 z_h = 0\]

---

Reminders

The homogeneous part is the solution we’ve found before with the general solution:

\[z_h(t) = C_1 e^{rt} + C_2 e^{r^* t}\]

where \(r = -\beta \pm i \sqrt{\omega_0^2 - \beta^2}\). In the case of a weakly damped oscillator (\(\beta^2 < \omega_0^2\)), we have:

\[z_h(t) = e^{-\beta t} \left( C_1 e^{-i \sqrt{\omega_0^2 - \beta^2} t} + C_2 e^{+i \sqrt{\omega_0^2 - \beta^2} t} \right)\]

These solutions die out as \(t \to \infty\). They are called transient solutions.

---

Solving the particular part

The particular part is the solution to the driven harmonic oscillator equation:

\[\ddot{z}_p + 2 \beta \dot{z}_p + \omega_0^2 z_p = f_0 e^{i \omega t}\]

Assume a sinusoidal solution (frequency, \(\omega\)) of the form: $\(z_p(t) = C e^{i \omega t}\)$

where \(C\) is a complex number. Then, we have:

\[-\omega^2 C e^{i \omega t} + 2 i \beta \omega C e^{i \omega t} + \omega_0^2 C e^{i \omega t} = f_0 e^{i \omega t}\]

\[\left(-\omega^2 + 2 i \beta \omega + \omega_0^2\right) C = f_0\]

---

Amplitude of the particular solution

\[C =\dfrac{f_0}{\left(\omega_0^2-\omega^2 + 2 i \beta \omega\right)}\]

We want to convert this to polar form:

\[C = A e^{-i \delta}\]

where \(A\) and \(\delta\) are real numbers. We use the complex form to compute the magnitude of the amplitude:

\[A^2 = C \bar{C} = \dfrac{f_0^2}{\left(\omega_0^2-\omega^2 + 2 i \beta \omega \right)\left(\omega_0^2-\omega^2 - 2 i \beta \omega \right)}\]

\[A^2 = \dfrac{f_0^2}{(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2}\]

---

Clicker Question 24-1

We found that the square amplitude of the driven harmonic oscillator is:

\[A^2 = \dfrac{f_0^2}{(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2}\]

When is the amplitude of the driven oscillator maximized?

1. When the driving frequency (\(\omega\)) is far from the natural frequency (\(\omega_0\))

2. When the driving frequency (\(\omega\)) is close to the natural frequency (\(\omega_0\))

3. When the damping (\(2\beta\)) is weak

4. When the damping (\(2\beta\)) is strong

5. Some combination of the above

---

Finding the phase

With,

\[C =\dfrac{f_0}{\left(\omega_0^2-\omega^2 + 2 i \beta \omega \right)} = Ae^{-i\delta}\]

then we can compare the complex forms:

\[f_0 e^{i \delta} = A \left(\omega_0^2-\omega^2 + 2 i \beta \omega \right).\]

Both \(f_0\) and \(A\) are real numbers, so the phase \(\delta\) is the same phase as the complex number:

\[\delta = \tan^{-1}\left(\dfrac{2 \beta \omega}{\omega_0^2 - \omega^2}\right)\]

---

The Particular Solution

Let’s return to the particular solution:

\[z_p(t) = C e^{i \omega t} = A e^{-i \delta} e^{i \omega t} = A e^{i(\omega t - \delta)}\]

\[z_p(t) = A \cos(\omega t - \delta) + i A \sin(\omega t - \delta)\]

So we get solutions to both driven oscillators:

\[x_p(t) = Re(z_p(t)) = A \cos(\omega t - \delta)\]

\[y_p(t) = Im(z_p(t)) = A \sin(\omega t - \delta)\]

These are the steady-state solutions.

They persist as \(t \to \infty\) and oscillate at the driving frequency \(\omega\).

---

The Full Solution

\[x(t) = x_h(t) + x_p(t)\]

Here, \(x_h(t)\) is the transient solution and \(x_p(t)\) is the steady-state solution.

For weakly damped oscillators, the transient solution can be written in the form:

\[x_h(t) = A_{tr}e^{-\beta t} \cos(\sqrt{\omega_0^2 - \beta^2} t + \delta_{tr})\]

where \(A_{tr}\) and \(\delta_{tr}\) are real numbers and are the amplitude and phase of the transient solution. Both are determined by the initial conditions.

\[x_p(t) = A \cos(\omega t - \delta)\]

where \(A\) and \(\delta\) are real numbers and are the amplitude and phase of the steady-state solution.

---

The Full Solution

The transient plus the steady-state solution is the full solution:

\[x(t) = A_{tr}e^{-\beta t} \cos(\sqrt{\omega_0^2 - \beta^2} t + \delta_{tr}) + A \cos(\omega t - \delta)\]

As \(t \to \infty\), the transient solution dies out and the steady-state solution persists.

\[x(t \to \infty) = A \cos(\omega t - \delta)\]

where

\[A = \dfrac{f_0}{\sqrt{(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2}} \qquad \delta = \tan^{-1}\left(\dfrac{2 \beta \omega}{\omega_0^2 - \omega^2}\right)\]

---

Resonance

The amplitude of the steady-state solution is:

\[A^2 = \dfrac{f_0^2}{(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2}\]

We change \(\omega_0\) and observe how the amplitude changes.

---

Achieving resonance

The denominator of the equation controls the amplitude:

\[(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2\]

Case 1: Tune \(\omega_0\) to be close to \(\omega\). Car Radio tuning

With \(\omega_0 = \omega\), the amplitude is:

\[A^2 = \dfrac{f_0^2}{4 \beta^2 \omega^2}\]

---

Achieving resonance

The denominator of the equation controls the amplitude:

\[(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2\]

Case 2: Tune \(\omega\) to be close to \(\omega_0\). Pushing a swing

Find the \(\omega\) that maximizes the amplitude by taking the derivative with respect to \(\omega\):

\[\dfrac{d}{d\omega} \left((\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2\right) = 0\]

\[2(\omega_0^2 - \omega^2)(-2\omega) + 8 \beta^2 \omega = 0\]

\[4\omega(\omega^2 - \omega_0^2 + 2 \beta^2) = 0\]

\[\omega = 0 \qquad \omega = \sqrt{\omega_0^2 - 2 \beta^2}\]

---

Resonance is Not Just Classical

The amplitude of the driven oscillator near resonance:

\[A^2 = \dfrac{f_0^2}{(\omega_0^2 - \omega^2)^2 + 4 \beta^2 \omega^2}\]

In particle physics, the Breit-Wigner formula gives the cross section near a resonance:

\[\sigma(E) \propto \dfrac{\Gamma^2/4}{(E - M)^2 + \Gamma^2/4}\]

Same structure. The substitutions are: \(M \leftrightarrow \omega_0\) (resonant mass/frequency) and \(\Gamma \leftrightarrow 2\beta\) (decay width / damping). The uncertainty principle connects width to lifetime: \(\Gamma = \hbar / \tau\).

Narrow peak \(\Rightarrow\) long lifetime. Broad peak \(\Rightarrow\) short lifetime.

---

The \(\Delta(1232)\) Resonance

Cross section (probability) vs. energy for \(\pi^+\) scattering off protons.

Image: Particle Data Group / Wikimedia Commons

---

Seeing the \(\Delta(1232)\)

• Shoot \(\pi^+\) (positive pions) at protons and vary the energy.

• Measure how often they interact: this gives the cross section.

• As the center‑of‑mass energy \(\sqrt{s}\) increases, the cross section suddenly spikes.

• This sharp peak occurs at $\(\sqrt{s} \approx 1232~\text{MeV},\)\( and is the signature of the \)\Delta(1232)$ resonance.

---

What the Peak Tells Us

• The position of the peak gives the \(\Delta\) mass: $\(M \approx 1232~\text{MeV}/c^2.\)$

• The width of the peak (how spread out it is in energy) is $\(\Gamma \approx 117~\text{MeV}.\)$

• A narrow peak ⟹ longer‑lived state; a broad peak ⟹ very short‑lived state.

• From the width, we can estimate the lifetime: $\(\tau \approx \frac{\hbar}{\Gamma} \sim 5.6 \times 10^{-24}~\text{s}.\)$

---

The \(\Delta^{++}\) State

• Around the peak, the proton + \(\pi^+\) system briefly forms a new state: $\(\pi^+ + p \rightarrow \Delta^{++} \rightarrow \pi^+ + p.\)$

• The \(\Delta^{++}\) has:

  • Mass \(M \approx 1232\) MeV/\(c^2\),

  • Very short lifetime \(\sim 10^{-23}\) s,

  • Main decay: \(\Delta^{++} \to p + \pi^+\).

• We never “see” the \(\Delta^{++}\) directly; we infer it from this enhanced scattering.

---

Resonance as a Driven Oscillator

• Think of the \(\pi^+ p\) system like a driven oscillator:

  • Driving frequency ⟺ collision energy \(\sqrt{s}\),

  • Natural frequency \(\omega_0\) ⟺ resonance energy (1232 MeV),

  • Damping \(\beta\) ⟺ decay width \(\Gamma\).

• At \(\sqrt{s} = 1232\) MeV, the system hits its resonance and the amplitude (cross section) is largest.

• Just as you can read off \(\omega_0\) and \(\beta\) from an amplitude‑vs‑frequency curve, you read off:

  • \(M\) from the peak position,

  • \(\Gamma\) from the peak width.

---

Why This Matters

• The \(\Delta(1232)\) is an excited state of the nucleon, made of the same quarks arranged differently.

• It is a textbook example of how:

  • Short‑lived states show up as resonance peaks in cross sections.

  • Lifetimes and internal structure can be extracted from scattering data.

• This is the same basic idea used later for heavier resonances, like the Z boson.

---

The Z Boson: Resonance - Counting the Universe

---

The Z Boson at LEP

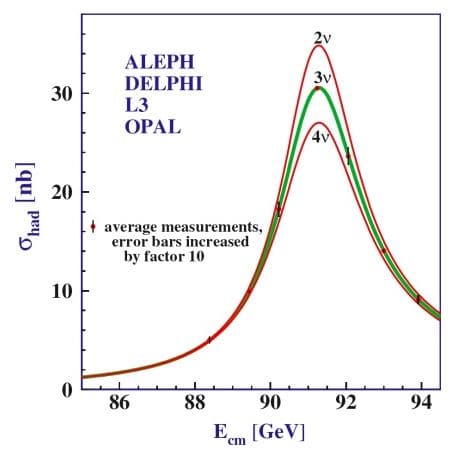

• At the LEP collider at CERN, electrons and positrons were collided at different energies.

• When the total energy matched the Z boson mass, the production rate jumped.

• On a plot of event rate vs. energy, this shows up as a tall bump (a resonance).

• The center of this bump gives the Z mass: $\(M_Z \approx 91.19~\text{GeV}/c^2\)$

• LEP recorded about 17 million Z decays.

---

Mass and Width of the Z

• The peak position of the bump tells us the Z mass: $\(M_Z \approx 91.19~\text{GeV}/c^2\)$

• The width of the bump tells us how quickly the Z decays: $\(\Gamma_Z \approx 2.495~\text{GeV}\)$

• Narrow bump ⟹ long‑lived particle (few ways to decay).

• Broad bump ⟹ short‑lived particle (many ways to decay).

---

What Determines the Width?

• The Z can decay in many ways:

  • Into quark–antiquark pairs (hadrons),

  • Into charged lepton pairs (\(e,\mu,\tau\)),

  • Into neutrino–antineutrino pairs.

• Each allowed decay channel adds a bit to the total width \(\Gamma_Z\).

• More decay channels ⟹ the Z disappears faster ⟹ the bump gets broader.

• So the measured width \(\Gamma_Z\) encodes all possible Z decays.

---

Neutrinos and the Z Width

• Each neutrino type gives a channel:

  \[Z \rightarrow \nu_i \bar{\nu}_i\]

• If there are \(N_\nu\) different light neutrino types, the width scales with \(N_\nu\).

• Physicists predicted:

  • 2 neutrinos ⟹ smaller width,

  • 3 neutrinos ⟹ some width,

  • 4 neutrinos ⟹ noticeably larger width.

• By precisely measuring the Z lineshape, LEP could count how many neutrinos contribute.

---

What LEP Found

• LEP measured the Z resonance shape extremely precisely.

• The observed total width:

  \[\Gamma_Z \approx 2.495~\text{GeV}\]

  matches the prediction for 3 light neutrino types.

• A fourth light neutrino would have made the peak clearly wider than what LEP saw.

• Conclusion:

  • There are three light neutrino generations.

  • This matches the three known generations of quarks and leptons.

---

Big Idea

• A resonance peak (like the Z) is not just a pretty bump:

  • Peak position ⟹ particle mass.

  • Width ⟹ particle lifetime and number of decay channels.

• By studying the shape of the Z boson resonance, LEP physicists learned:

  • The mass and lifetime of the Z.

  • That nature has three generations of light neutrinos.

Resonance physics let us count how many generations of matter our universe has.

---
