In our basic model of a battery, we said that the force per unit charge the battery provides through chemical reactions (f) had a magnitude equal the electric field produced by the separated charge (E). This maintains a constant drift speed across the battery for the electrons.
If the battery has some internal resistance (r), which is larger?
A metal bar moves with constant speed to the right. A constant magnetic field points out of the page. What happens to the electrons in the bar (in the frame of the moving bar)?

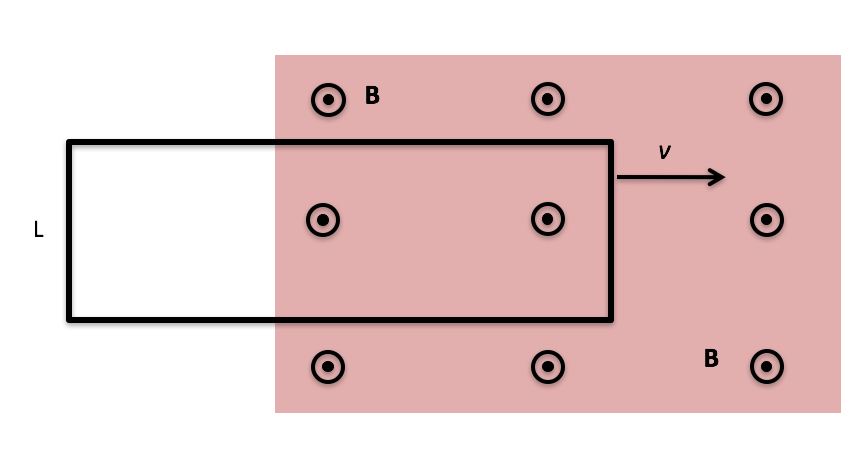

One end of rectangular metal loop enters a region of constant uniform magnetic field B, with initial constant speed v, as shown. What direction is the magnetic force on the loop?
One end of rectangular metal loop enters a region of constant uniform magnetic field B, out of page, with constant speed v, as shown. As the loop enters the field is there a non-zero emf around the loop?

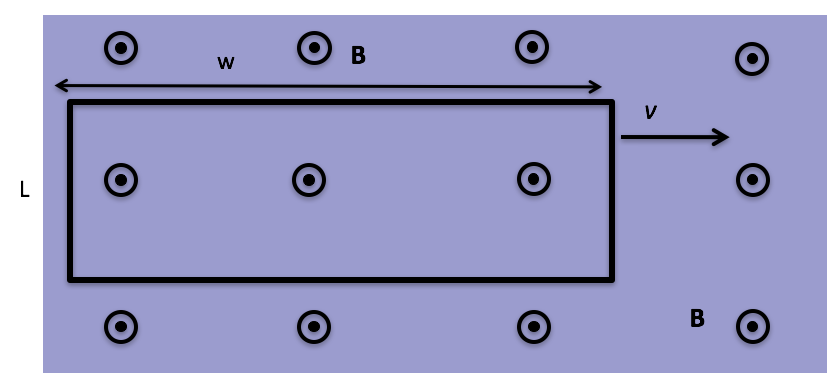

A rectangular metal loop moves through a region of constant uniform magnetic field B, with speed v at t=0, as shown. What is the magnetic force on the loop at the instant shown? Assume the loop has resistance R.
